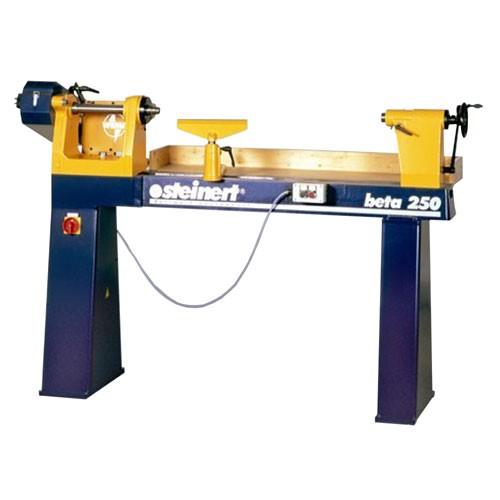

Steinert® beta 250 lathe

heavy hand lathe made of grey cast iron with back bearing

Drechselbank steinert beta 250
Please inform me as soon as the product is available again.

€6,545.71 *

Prices incl. VAT plus shipping costs

currently not in stock

Delivery time / availability on request

  • 000004
Centre height: 250mm  Distance between centres: 1075mm  Motor: 1.5 KW, 400v; 50... more
Product information "Steinert® beta 250 lathe"
  • Centre height: 250mm
  • Distance between centres: 1075mm
  • Motor: 1.5 KW, 400v; 50 Hz (motors with different power and voltage can be installed for a surcharge)
  • Mains connection: 400v, 50 Hz
  • Speeds in rpm: 5 levels, 350/800/1400/2400/3200 or, for an additional charge, continuously variable in 5 ranges from 70 to 3600
  • Headstock / spindle: grey cast iron with hollow spindle (bore 12 mm) with spindle thread M33 / DIN 800 and MK 2 inner cone, rotatable with centering plate
  • Spindle bearing: maintenance-free triple bearing with preloaded shoulder bearings and counter-pressure bearing at the end of the spindle for hard stop work (Note: The counter-pressure bearing closes the hollow spindle)
  • Tailstock: grey cast iron with inner quill taper MT 2, quill stroke with handwheel 120mm
  • Control panel: magnetic control panel
  • Hand rest rail: 275mm, shaft 30mm Weight in kg: 280
  • LxWxH in mm: 1950/600/1200
