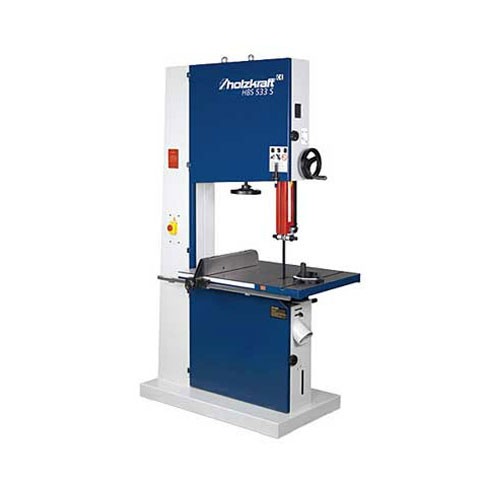

Bandsaw HBS 533 S SET

Professional band saw (400 V)

Bandsäge HBS 533 S
€3,606.32 *

Prices incl. VAT plus shipping costs

currently not in stock

Delivery time / availability on request

  • stu-5155313SET
HBS 533 S - Precision wood bandsaw in heavy design with band saw blade quick clamping for... more
Product information "Bandsaw HBS 533 S SET"
HBS 533 S - Precision wood bandsaw in heavy design with band saw blade quick clamping for professional users.
  • heavy professional version with a high dead weight for maximum smoothness
  • Particularly smooth and precise run thanks to the torsion-free machine housing
  • Large-sized gray cast iron saw table in one piece, swiveling from 0 ° to + 20 ° with a ground and polished surface
  • patented table tilting device with handwheel and rack
  • Saw band quick tension
  • Ceramic saw band roller guide
  • large cast rip fence
  • quick and precise cutting height adjustment via handwheel and rack with millimeter scale
  • Safety switch for automatic shutdown when the door is opened
  • large cast rip fence
  • with angle stop as standard
  • Flywheels made of gray cast iron with a special coating on the running surfaces
  • Viewing window to check the saw band run
Quick release system
  • Eccentric quick release lever
  • the basic voltage setting is not changed
  • with integrated saw band tension indicator
Professional saw table guide
  • the heavy, massive saw table made of gray table is easily and comfortably adjusted via a handwheel rack guide
  • the inclination is continuously adjustable from 0 ° to + 20 °
  • Patented
Technical specifications
  • Work table dimensions: 750 x 530 mm
  • Cutting speeds: 1400 m / min.
  • Flywheel Ø: 530 mm
  • Max. Cutting height: 350 mm
  • Max. Cutting width with fence: 465 mm
  • Max. Cutting width without stop: 510 mmmm
  • Bandsaw blade length: 4190 mm
  • Precision guidance: up / down
  • Saw table inclination: 0 ° - + 20 °
  • Motor power 400 V / 50 Hz / P2: 3.75 kW
  • Weight: 305 kg
  • Dimensions: 1000 x 720 x 2040
  • Suction nozzle diameter: 2 x 120 mm
