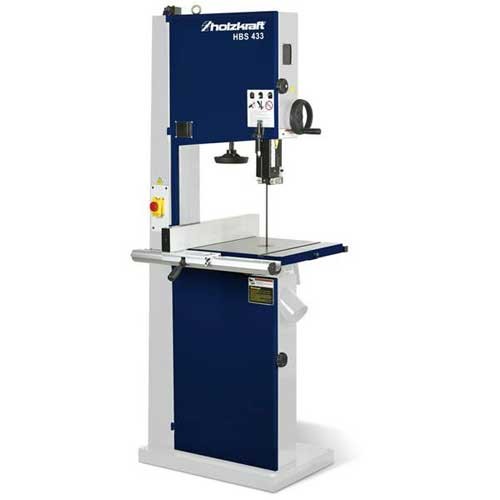

Bandsaw HBS 433 SET

Do-it-yourself band saw (400 V)

Bandsäge HBS 431
€2,050.76 *

Prices incl. VAT plus shipping costs

currently not in stock

Delivery time / availability on request

  • stu-5154303SET
Precision wood band saws with band saw blade quick tensioning and two cutting speeds for the... more
Product information "Bandsaw HBS 433 SET"
Precision wood band saws with band saw blade quick tensioning and two cutting speeds for the ambitious do-it-yourselfer
  • Particularly smooth and precise running thanks to a torsion-free machine housing and a solid sheet steel substructure
  • Large-sized gray cast iron saw table made of one piece, with a precisely ground and polished surface
  • convenient laser device for marking cutting lines
  • Saw band quick tensioning via eccentric lever on the back of the machine
  • with two speeds as standard
  • precise 3-roller saw band guides, top and bottom as standard
  • Fast cutting height adjustment via rotary knob and rack with millimeter scale
  • Smooth-running aluminum rip fence with eccentric quick clamping and magnifying glass
  • Standard miter angle stop, adjustable by 60 ° on both sides
  • Safety switch for automatic shutdown when the door is opened
  • Integrated display of the saw band tension for different saw band widths
  • Readable from the outside through a viewing window integrated in the door
  • two speeds can be selected via V-belt adjustment
  • Balanced cast iron flywheels ensure smooth running
  • Cutting height adjustment via handwheel with rack guide
  • Eccentric quick release lever
  • the basic voltage setting is not changed
Technical specifications
  • Work table dimensions: 610 x 431 mm
  • Cutting speeds: 900/450 m / min
  • Flywheel Ø: 430 mm
  • Max. Cutting height: 270 mm
  • Max. Cutting width with stop: 370 mm
  • Max. Cutting width without stop: 410 mm
  • Bandsaw blade length: 3345 mm
  • Precision guide: 3 rollers above / below
  • Saw table inclination: -10 ° - + 45 °
  • Motor power 230 V / 50 Hz / P2: 1.5 kW / 400 V
  • Weight: 130 kg
  • Dimensions: 768 x 512 x 2048
  • Suction nozzle diameter: 2 x 120 mm
