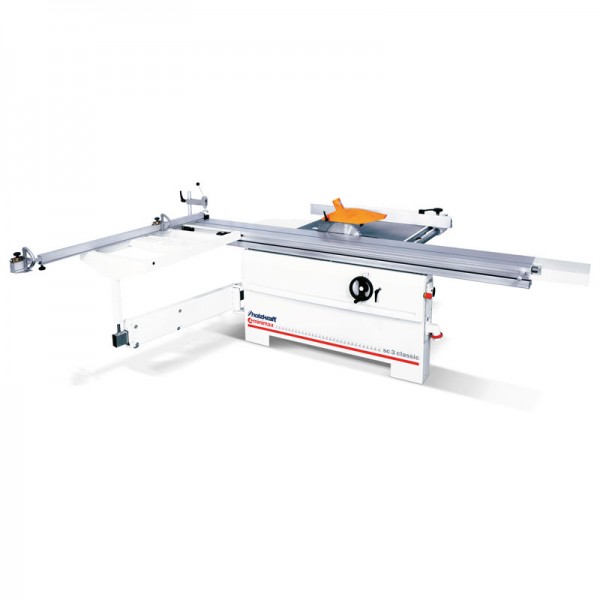

Panel Saw with Roller Table SC 3 Classic 23

Small format circular saw, cutting height 100mm

Formatkreissäge mit Rolltisch SC3 classic 23
€5,858.00 *

Prices incl. VAT plus shipping costs

currently not in stock

Delivery time / availability on request

  • stu-5504323
SC3 - small format circular saw with swiveling saw blade and high quality sliding table made... more
Product information "Panel Saw with Roller Table SC 3 Classic 23"
SC3 - small format circular saw with swiveling saw blade and high quality sliding table made of anodised aluminum.

  • Cutting plane directly on the roller table
  • Precision-guided format sliding carriage made of aluminum, anodised as standard
  • Large table extension arm guided on telescopic arm and longitudinally adjustable
  • Extendable aluminum telescopic stop, angle adjustable with professional stop flaps
  • Rip fence with quick clamping and fine adjustment
  • The standard table extension and table extension enable easy work with larger workpieces
  • The large-sized gray cast iron saw unit is attached twice to the cast table and guarantees stability, precision, smooth running and a long service life
  • Large work table made of ground grey cast iron remains permanently flat
  • Heavy cast steel construction
  • Smooth run and precise cuts
  • Equipped with a powerful three-phase motor
  • Maximum cutting height is also achieved with a built-in scoring device (scoring device optional)
Scope of delivery:
  • Table extension and table widening
  • Anodised aluminum sliding table
  • Aluminum folding stops
  • Rip fence with round rod guide and fine adjustment
Technical specifications:
  • Table dimensions: 840 x 560mm
  • Table height: 900mm
  • Trimming length: 2250mm
  • Cutting height max. 90° with scoring: 100mm
  • Cutting height max. 45° with scoring: 82mm
  • Cutting width max. left of the saw blade: 2310mm
  • Cutting width with rip fence: 900mm
  • Inclination of the saw blade: 90° - 45°
  • Saw blade Ø max. with scoring: 315mm
  • Saw blade Ø max. without scoring: 315mm
  • Scoring saw blade Ø (option): 80mm
  • Main saw blade speed: 4000 min-1
  • Speed scoring saw blade 8000 min-1
  • Electrical connection: 400v / 50 Hz
  • Motor power: 4.0 kW
  • Extraction nozzle diameter: 120mm
  • Suction nozzle Ø saw blade protection: 60mm
  • Weight: 380kg
