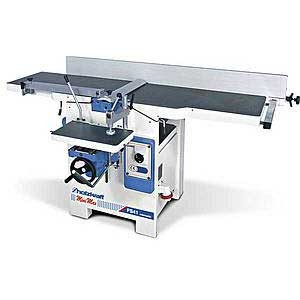

Surface Planer and Thicknesser FS 41 Classic Tersa
semi-professional machine, 410mm working width
FS 41 classic Tersa With TERSA knife shaft for changing planer knives in seconds... more
Product information "Surface Planer and Thicknesser FS 41 Classic Tersa"
FS 41 classic Tersa
- With TERSA knife shaft for changing planer knives in seconds
- Particularly quiet running
- Helical-toothed steel feed roller for constant and even wood feed
- The particularly long one-piece dressing tables enable workpieces to be dressed easily
- Large planing fence can remain in its position when the planing tables are opened
- Planing tables opening to the rear
- The heavy weight of the machine ensures maximum precision and smooth running
- Powerful (S1) industrial motor
- Robust steel / cast iron construction
Dimensions in mm
Technical specifications:
--- Technical data of the dresser ---
- Total length of the tables: 1800mm
- Feed table length: 920mm
- Table height: 870mm
- Working width: 410mm
- Max. Chip removal: 4mm
--- Technical data thickness ---
- Dimensions thick table: 605 x 420mm
- min./max. Working height: 3/230mm
- Feed speeds: 7m / min
- Planer shaft Ø / planer knife: 72mm / 3 pcs
- Speed: 5200rpm
- Motor 400v / 50Hz / 5.0 kW (6.6 HP)
- Extraction nozzle diameter: 2 x 120mm
- Weight: 330kg
--- Technical data slot drilling device (optional) ---
- Table size: 470 x 220mm
- Cross / longitudinal stroke: 155/110mm
- Vertical stroke: 120mm
