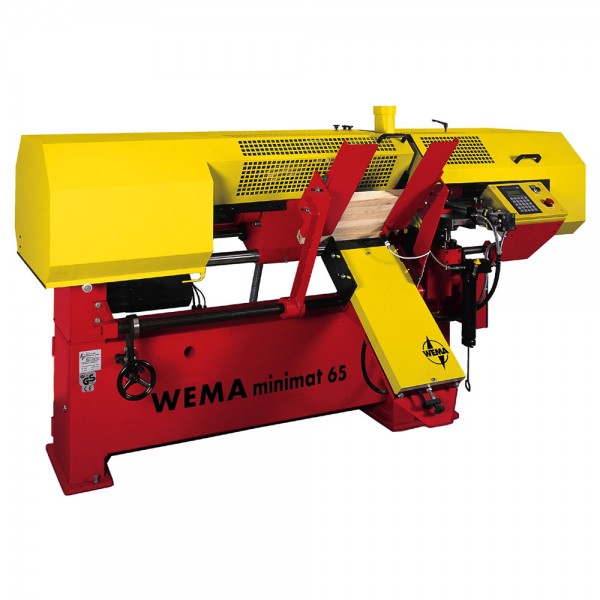

steinert® minimat 65

Our Minimat 65 is designed for the highly productive manufacture of turned wood parts up to diameter 65mm.

The machine is equipped with two pneumatically controlled turning supports, a pneumatically controlled drilling support and a pneumatically parting support. Both turning supports can be equipped with form cutting tools. They are designed to be liftable so that deep profiles can be processed several times.

The magazine can be equipped with square blanks with a length of 340 mm to 800 mm.

TECHNICAL SPECIFICATIONS:

• Turning length: 3mm - 120mm (with tip up to 150mm)
• Turning diameter: 3mm - 65mm
• Drilling depth: up to 80mm (up to 100mm on special request)
• Drill holder: MK 2 (on special request 13mm or MK 3)
• Clamping length: 340mm - 800mm
• Tool holder: dovetail mount
• Spindle speed: 1600/2800/5000rpm
• Drive motor: 3 KW (on special request 2.2 KW)
• Feed motor: 0.75 KW
• Electrics: Safety electrics according to VDE motor protection IP 54
• Voltage: 400v / 230v / 3 / PE / N / 50 Hz
• Total power requirement: maximum 4.2 KW
• Extraction: 3x 100mm for turning tool / drill; 100mm for roughing steel
• Compressed air: connection 5 to 6 bar
• Compressed air consumption: maximum 90 l / min, average 30/50 l / min
• Dimensions: L 2450, W1200, H1320
• Weight: 620kg
