Long Bed with Tailstock

for Steinert® VB36

€3,860.00 *

Prices incl. VAT plus shipping costs

currently not in stock

Delivery time / availability on request

  • VB36-21C/H
The bench bed with tailstock for attachment to the basic machine. This means that the head... more
Product information "Long Bed with Tailstock"

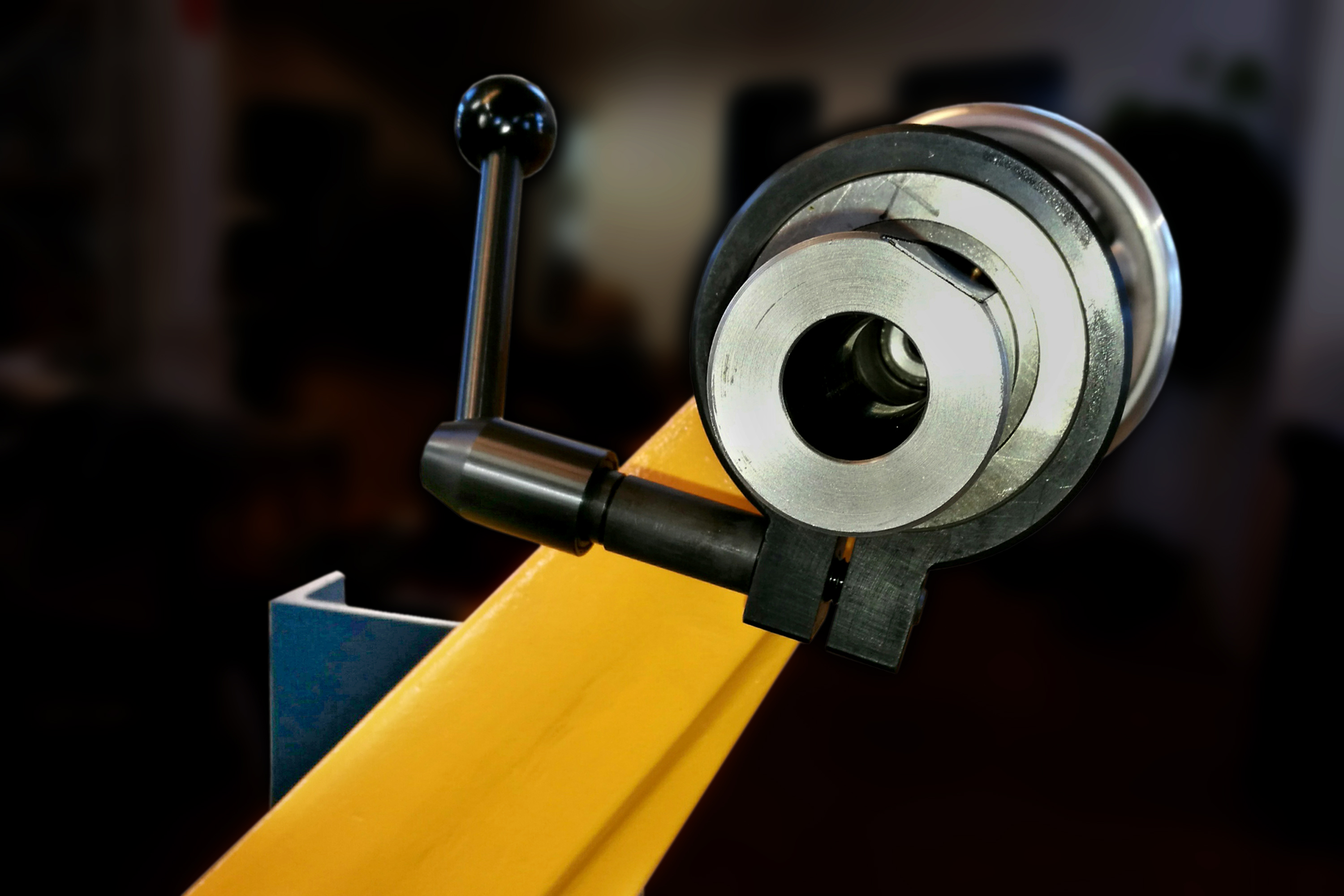

The bench bed with tailstock for attachment to the basic machine. This means that the head lathe can be expanded into a conventional lathe with a sliding tailstock. If the tailstock is not required, it can be folded back in just a few simple steps. The whole bench bed can be attached or detached in a few minutes.

  • The tailstock quill with a quill stroke of 150mm is drilled through and provided with a measuring scale
  • The driver and the revolving centre point (MK3, Multistar) are included in the scope of deliver
  • Centre height with large bench bed: 330mm
  • Distance between centres with large bench bed: 790mm

In the past, the VB36 head lathe was manufactured in 2 different heights - "L" (low) and "H" (high). Since 2019 the VB36 has only been manufactured in the "H" version as standard.
The large bench bed is accordingly available in heights "L" and "H" and must be ordered to match the machine. The variant offered here corresponds to the height "H". If required for older machines, the bench bed can also be supplied in height "L" on request.

Further information, pictures, films and more can be found on the website  www.vb36.com
