Mobile Chip Extractor ASA 1903

Unfiltered air extractor with chassis

Stürmer (Deutschland)

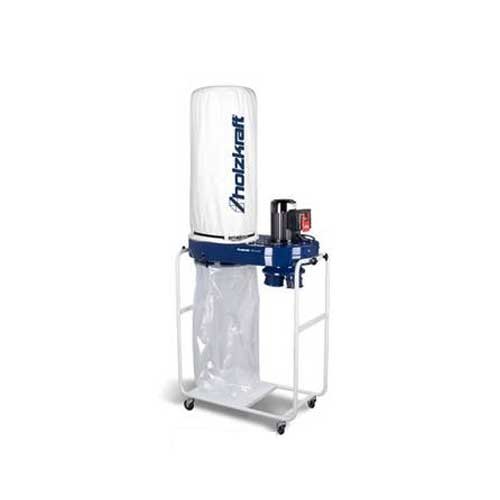

Preview: Mobile Chip Extractor ASA 1903 Preview: Ansaugeinheit kann um 180° gedreht verbaut werden. (Abbildung zeigt ASA 7703)
Mobile Chip Extractor ASA 1903
Ansaugeinheit kann um 180° gedreht verbaut werden. (Abbildung zeigt ASA 7703)

€712.81 *

Prices incl. VAT plus shipping costs

currently not in stock

Delivery time / availability on request

Request price
  • Order number: stu-5128193
Description Evaluations 0
Description
ASA raw air extraction systems 1903 - the right extraction system with standard chassis for... more
Close menu
Product information "Mobile Chip Extractor ASA 1903"
ASA raw air extraction systems 1903 - the right extraction system with standard chassis for every application.

  • For milling, planing, turning  and sawdust (no dust)
  • High suction power
  • Particularly quiet
  • Easy to move thanks to castors
  • Made of solid sheet steel, no fragile plastic
  • Lower static charge compared to plastic
  • Fan wheel made of metal, in the shape of a blade for increased suction power
  • Significantly reduced dust content thanks to the double-woven fine filter bag of category G1
  • Quick-release fasteners for filter and chip bags
  • Top price-performance ratio
  • The suction unit can be installed rotated by 180°, which enables the suction direction from above or below
Technical specifications:
  • Air performance free suction: 1900m³ / h
  • Filter area approx .: 1.92m²
  • Maximum negative pressure: 1,669 Pa
  • Filter category: G1
  • Motor power 50 Hz:  1.5 kW /  400v
  • Weight: 39kg
  • Dimensions in mm:  1000 x 500 x 2100
  • Chip bag volume: 110 Ltr.
  • Extraction nozzle Ø on the device:  203mm (8")
  • Extraction nozzle Ø on the standard distributor: 2 x 100mm
  • Device height with filter cartridge: 2150mm
  • Ø filter bag dimensions: 370 x 970mm
  • Ø chip bag dimensions: 410 x 1100mm
  • Max. Sound pressure level: 85.7dB (A)
